Product Details

Hydraulic Cylinder Type

Adapted to higher operating pressures

Simple assembly and Maintenance

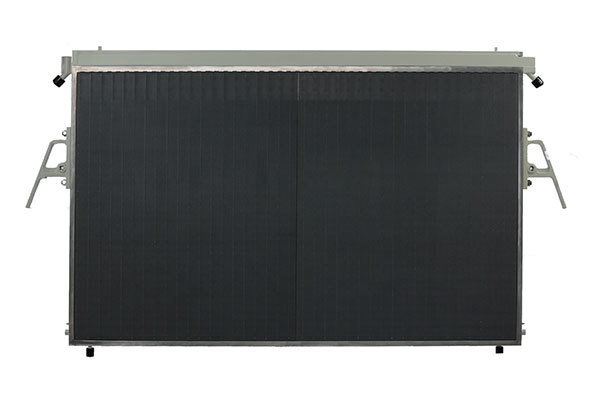

ANC270

Effective
Area

2.72㎡

Designed Current

Density

5.5-6KA/㎡

Anode Side

ANC330N

Effective
Area

3.3㎡

Designed Current

Density

5.5-6KA/㎡

Cathode Side



Diverse ANC Membrane Cells Types

Model/
Feature

ANC095

ANC150

ANC270FC

ANC270

ANC270W

ANC290

ANC330

ANC330N

ANC350

Anode and
cathode
circulation
type

Natural
circulation

Natural
circulation

Forced
circulation

Natural
circulation

Natural
circulation

Natural
circulation

Natural
circulation

Natural
circulation

Natural
circulation

Effective
area

0.95m²

1.5m²

2.72m²

2.72m²

2.85m²

2.9m²

3.276m²

3.3m²

3.5m²

Current
density
(Designed)

4.5-5KA/m²

4.5-5KA/m² 4.5-5KA/m²

5.5-6KA/m²

5.5-6KA/m²

5.5-6KA/m²

5.5-6KA/m²

5.5-6KA/m²

5.5-6KA/m²

Current
density
(Maximum)

5.5KA/m²

5KA/m²

5KA/m²

8KA/m²

8KA/m²

8KA/m²

8KA/m²

8KA/m²

8KA/m²

Electrolyzer
fastening
method

Hydraulic
cylinder/
tie rod

Tie rod

Hydraulic
cylinder

Hydraulic
cylinder

Jacking rod

Tie rod

Tie rod

Hydraulic
cylinder

Tie rod
